Denosumab for treating periprosthetic osteolysis: a feasibility study

Abstract

Objective

Wear-induced osteolysis is a leading cause of late failure in total hip arthroplasty (THA). Denosumab, a RANKL inhibitor, suppresses osteoclast activity and may slow osteolytic progression. This feasibility study aimed to assess the practicality of conducting a randomized, double-blind, placebo-controlled trial evaluating Denosumab’s effect on periprosthetic osteolysis in asymptomatic THA patients.

Results

Twelve patients were enrolled; ten completed follow-up. No significant difference in lesion volume change was observed between groups (Denosumab: +1.53 cm³; Placebo: +0.49 cm³). Secondary clinical outcomes also showed no notable differences. The trial protocol, recruitment, treatment, and follow-up were feasible, though slow enrollment limited statistical power. This study demonstrates the feasibility of a larger trial investigating Denosumab for osteolysis prevention.

Trial registration

Clinicaltrails.gov, NCT02299817. Registered 20 November 2014. https://www.clinicaltrials.gov/study/NCT02299817?term=Denosumab%20for%20Treating%20Periprosthetic%20Osteolysis.%26;rank=1

Introduction

Total hip arthroplasty (THA) is one of the most cost-effective and quality of life restoring surgical procedures in orthopaedics and more than 2 million patients undergo THA worldwide annually [1, 2]. Although THA generally leads to remarkably good outcomes, more than 100, 000 patients each year have to undergo a risk-filled and costly revision surgery due to aseptic loosening caused by osteolysis. This cell-mediated inflammatory response to wear debris from the artificial joint is one of the major factors in reducing the longevity of a THA [3,4,5]. The risk of failure is highest in younger males with a 30% risk for revision surgery within 10 years [6, 7]. Despite continual changes in surgical technique and implant design, the revision THA burden has not decreased over time and is currently around 10% in Sweden and 17% in the US [8, 9].

Osteolytic lesions around well-fixed orthopaedic implants are notoriously difficult to detect and are, 7–14 years after surgery, present in 10–70% of hips [10, 11]. They are in almost all cases asymptomatic and can only be detected with a reasonably good sensitivity and specificity using computed tomography (CT) or magnetic resonance imaging (MRI) [12]. The lesions typically occur more than 5 years after surgery and, when extensive, undermine the bony fixation of the implant thereby leading to loosening of the artificial joint [11]. There is little data on the development and progression of osteolysis around hip implants and there are few studies where osteolytic lesions have been systematically followed over a number of years using CT or MRI [13, 14]. Denosumab has however, to the best of our knowledge, not been used to try to prevent the progression of osteolysis and aseptic loosening in THA. We hypothesized that Denosumab is effective in reducing wear-induced osteolysis around uncemented acetabular implants in THA.

Methods/Design

Study design

A randomized, double-blind, placebo-controlled trial was conducted at the Orthopaedic Department of Danderyd University Hospital in collaboration with the Karolinska Institutet in 2015–2021. Patients were randomized in a 1:1 ratio to placebo or Denosumab. Osteolytic lesion volume (< 10 cm³/≥10 cm³) at screening and physical activity according to Johnston (< 4-low activity level/≥4-high activity level) were used as stratification to ensure that these are evenly distributed between the two groups [14,15,16]. The Ethics Committee of the Karolinska Institute and the Swedish Medical Products Agency approved the study. The trial was initiated, designed, and performed as an academic investigation and is registered at ClinicalTrials.gov (NCT02299817). The guidelines of the CONSORT Statement were followed [17]. All study data was collected and managed in a digital Case Report Form (CRF) using REDCap electronic data capture tools hosted at Karolinska Institutet [18].

Study population

We included patients, aged 40–85 years, with a primary THA performed due to osteoarthritis or congenital dysplasia of the hip ≥ 7 years before inclusion and who have an osteolytic lesion of at least 4 cm³ and at most 40 cm³ around an uncemented acetabular component with a polyethylene liner. Exclusion criteria included pain from the hip (Visual analogue score ≥ 3), any surgery of the hip after index operation, any previous use of bisphosphonates and inflammatory arthritis. A detailed inclusion and exclusion list is provided (Table 1).

Table 1 Detailed inclusion and exclusion criteria

Treatments

Half of the patients received a 1 ml subcutaneous injection of Denosumab 60 mg on day one and every 6 months with last treatment at 30 months. The other half received placebo injections. Calcium and Vitamin D (500 mg + 400 IE) was administrated twice daily from day 1 to 3 years to all patients.

Endpoints

The primary endpoint variable was the change in volume of the osteolytic lesion over 3 years (measured with 3D-CT in cm³):

$$\:E{fficacy}_{3\:years}={Volume}_{3\:years}-{Volume}_{baseline}$$

.

Secondary endpoints included change in volume of the osteolytic lesion over 2 years and clinical outcome scores. The Harris hip score (HHS) was used to assess patient-reported functional hip status and physical activity [19, 20]. Health-related quality of life was assessed by the EQ-5D (EuroQoL) [21].

Osteolysis

We used a high-resolution 3D-CT at inclusion to detect and measure the volume of the osteolysis according to Howie et al. [13, 14]. The scan was repeated at 2 and 3 years. Osteolysis is defined as a demarcated nonlinear osteolytic lesion > 3 mm. The measurements were performed by a technician otherwise not involved in the study and blinded to treatment and who is trained in quantitative CT analysis. 3D-CT has been shown to have an 80% sensitivity and a 100% specificity in detecting osteolytic lesions around uncemented acetabular components [22]. Once detected, the volume of the lesion can be measured with an error of mean (SD) 7.1% ±24.1% (0.3 ± 1.1 cm³) [22].

Adverse events

Adverse events (AEs) were defined as any untoward medical occurrence in a patient or clinical investigation subject administered a pharmaceutical product and that does not necessarily have a causal relationship with this treatment (Table 2). The principal investigator would record and grade all adverse events according to certain criteria (Supplemental Table 1).

Table 2 Clinical outcomes at screening, 2 and 3 years follow up

Sample size

In a pilot study using 3D-CT Schwarz et al. identified 19 patients with osteolytic lesions around an uncemented acetabular cup used in THA [23]. After 1 year the volume of the lesions had increased with mean (SD) 3.19 (3.67) cm³. Howie et al. studied the natural progression of osteolytic lesions after THA with 3D-CT [14]. They scanned 30 patients with a known osteolytic lesion 15 months (range, 12–27) after the initial scan and found that 16 (53%) of the lesions had increased in volume. The lesions most likely to increase in size was ≥ 10 cm³ at the initial scan. The median volume increase was 3 cm³ during the 15 months studied. Based on the work by Schwarz and Howie and thereby assuming a 3 cm³ increase annually and a 3-year study period would indicate that we are looking for a mean increase of 9 cm³ with a SD of 8 cm³. The SD is estimated by dividing Howie et al.´s range of lesion size by 4 as suggested by Hozo et al. [24]. For Denosumab we assume that it will reduce the progression of osteolysis about 50% compared to placebo. Patients treated with Denosumab would therefore have a mean increase of 4.5 cm³ (0.5 × 9 cm³) after 3 years. A two-tailed superiority sample size calculation for the primary endpoint variable change in osteolytic volume after 3 years, assuming a progression of volume of 9 cm³ for the placebo and 4.5 cm³ for the Denosumab group and with a SD of 8 cm³ in both groups and a p-value of 0.05 means 50 subjects in each group for an 80% power. We aimed to include 55 patients in each group to allow for loss to follow-up and loss of data.

Statistics

The analyses were performed on the basis of the intention-to-treat principle. Unpaired Student’s t-test was used for comparison of change in osteolysis volume at 2 and 3 years. Descriptive statistics (means and standard deviations) was used to describe patient characteristics and outcome variables at the measurement points. We used non-parametric tests for HHS and EQ-5D. For subjects that withdrew from the study before year 3, the data from the last observation was carried forward.

Results

We screened a total of 32 patients of which 12 were included. We lost 1 patient in each group during follow-up and analysed 5 in each group (Fig. 1). Characteristics were similar between groups (Table 3).

Table 3 Descriptive characteristics of the included study participants

Fig. 1

CONSORT flow diagram

Primary endpoint

The change in volume of the osteolytic lesion as measured by 3D-CT over 3 years showed a larger change in volume in the Denosumb group compared to the placebo group, but there was no significant difference between groups. The mean change in volume was 1,53 cm² (CI -0.51 to 3.56) for the Denosumab and 0,49 cm² (CI -0.22 to 1.24) for the placebo group respectively (Fig. 2).

Fig. 2

Mean volume change in osteolytic lesions at 3 years follow up. Error bars indicate 95% CI

Secondary endpoint

There was no significant difference in the volume of the osteolytic lesions at the 2 years and 3 years follow up (Fig. 3). There was no significant difference between clinical outcomes at 2 and 3 years follow-up (Table 2). No AE occurred in either group. There were no signs of the initial osteolysis rate influencing patient outcomes.

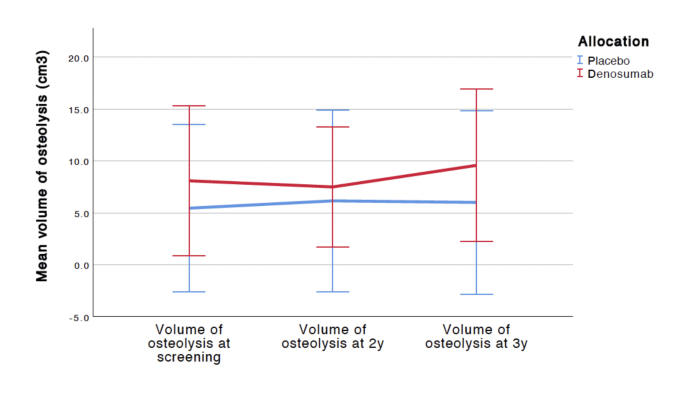

Fig. 3

Mean volume change of osteolysis lesions during 2 and 3 years follow up

Discussion

This trial demonstrates that a full-scale RCT investigating Denosumab for periprosthetic osteolysis is feasible but was challenged in our case by recruitment barriers and the strict criteria. Although underpowered, our study establishes the groundwork for larger trials and supports further investigation of Denosumab in this context.

We included patients with asymptomatically osteolytic lesions. These lesions are, based on the current literature, highly likely to progress over the years and lead to massive osteolysis and require revision surgery. The risk of dislocation and deep periprosthetic joint infection is higher following revision arthroplasty than after a primary THA [25]. The clinical outcome regarding hip function is also poorer after revision surgery [26].

The susceptibility to develop osteolysis has been shown to vary between individuals [27, 28]. It should be noted that bisphosphonates have been found to be effective in reducing disuse bone atrophy (a.k.a. “stress-shielding”) around orthopaedic implants but have not been effective in preventing progress of osteolytic lesions [29, 30]. Inhibitors of cathepsin K are in development for treatment of osteoporosis and have recently been shown to reduce fracture risk in patients with osteoporosis [31]. Recently, Denosumab was found to be effective in preventing osteoporosis related fractures in post-menopausal women by blocking RANKL and thereby inhibiting the development and activity of osteoclasts [32]. In a recently published animal model of prosthetic loosening, targeting osteoclast recruitment via RANKL inhibition was found to be effective in targeting osteoclasts [33]. Taken together, these findings indicate a potential for Denosumab to inhibit osteolysis on a biochemical level and future studies are still warranted in order to elucidate this hypothesis. There are a few reported cases of atypical femoral fractures after Denosumab treatment, although these tend to be rare and often associated with long term oral bisphosphate treatment [34, 35].

In conclusion, our study did not meet its primary outcome, likely due to stringent inclusion criteria and a smaller-than-planned sample size. We did find that the volume of osteolysis induced by Denosumab was greater than anticipated. This could indicate that Denosumab might have an inductive effect on osteolysis, and future studies should consider this endpoint.

Despite its limitations, this study represents the first clinical exploration of Denosumab’s potential role in managing periprosthetic osteolysis. While definitive conclusions cannot be drawn, the findings offer valuable preliminary data to inform future trial design. Given Denosumab’s well-established mechanism of inhibiting osteoclast activity via RANKL suppression, further investigation remains scientifically justified. Continued research is warranted, especially considering the clinical burden and risks associated with revision hip arthroplasty.

Limitations

This study’s primary limitation is its small sample size of 12 participants, reducing statistical power and limiting generalizability. Future trials are encouraged to use broader inclusion criteria in order to reach statistical power. A multi-center design would be preferable.

The three-year follow-up may not capture long-term outcomes such as progression to revision surgery. Additionally, the use of 3D-CT, while specific, may have limited accuracy in detecting small changes in osteolytic lesion volume. Researchers might explore alternative imaging or biomarkers for osteolysis progression.

Lastly, the study’s focus on older adults with long-standing hip replacements restricts the generalizability of findings to other patient groups. Larger and more diverse populations are required in order to generalize findings.
